- Designed for Pro Music, and other applications.
- 15” woofer and 1.5” high-frequency titanium compression driver
- 44 Hz – 20 kHz frequency range; 134 dB max SPL
- 1000 W Class D lightweight amplifier — runs cool without fans

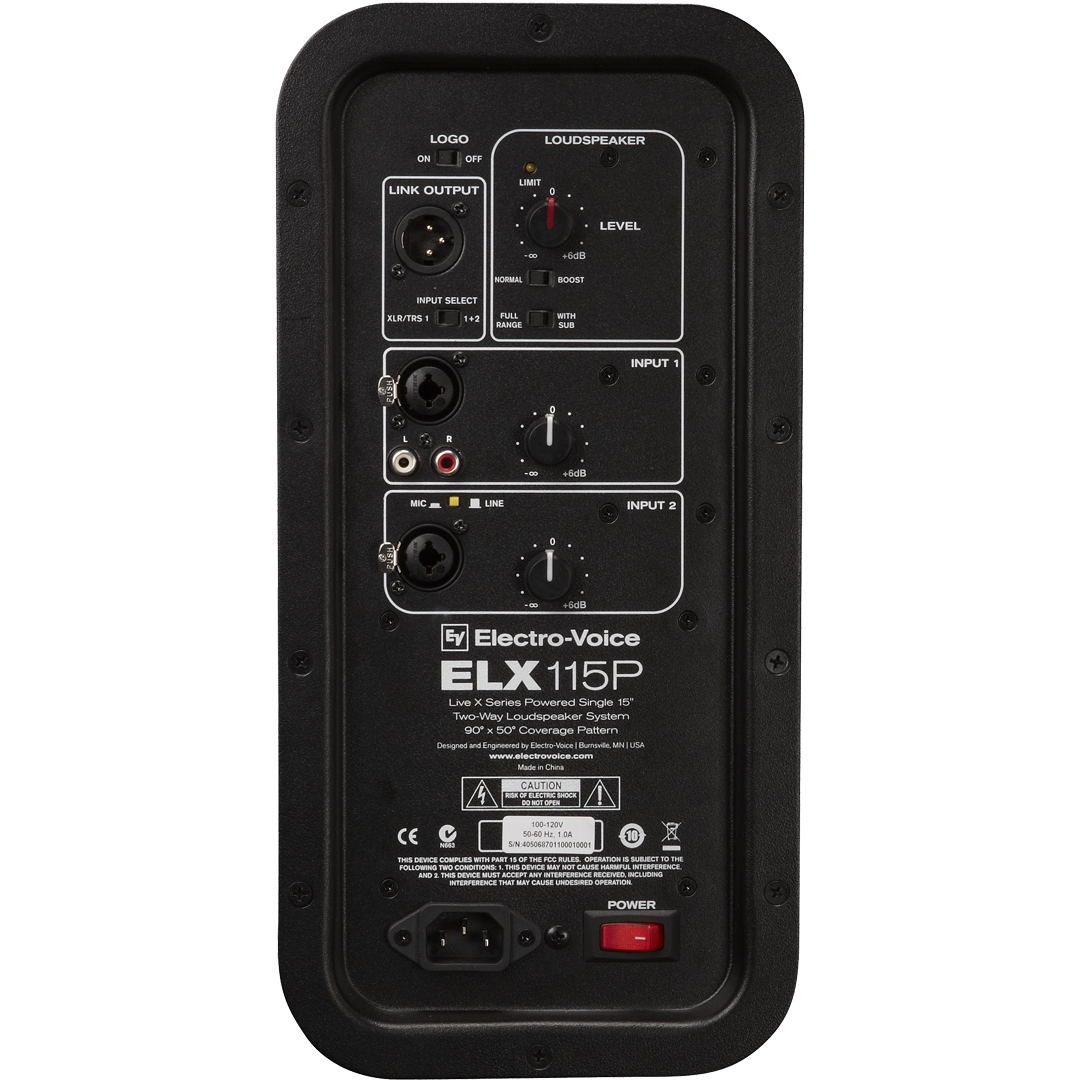

- Easy to connect and control with versatile input and output options

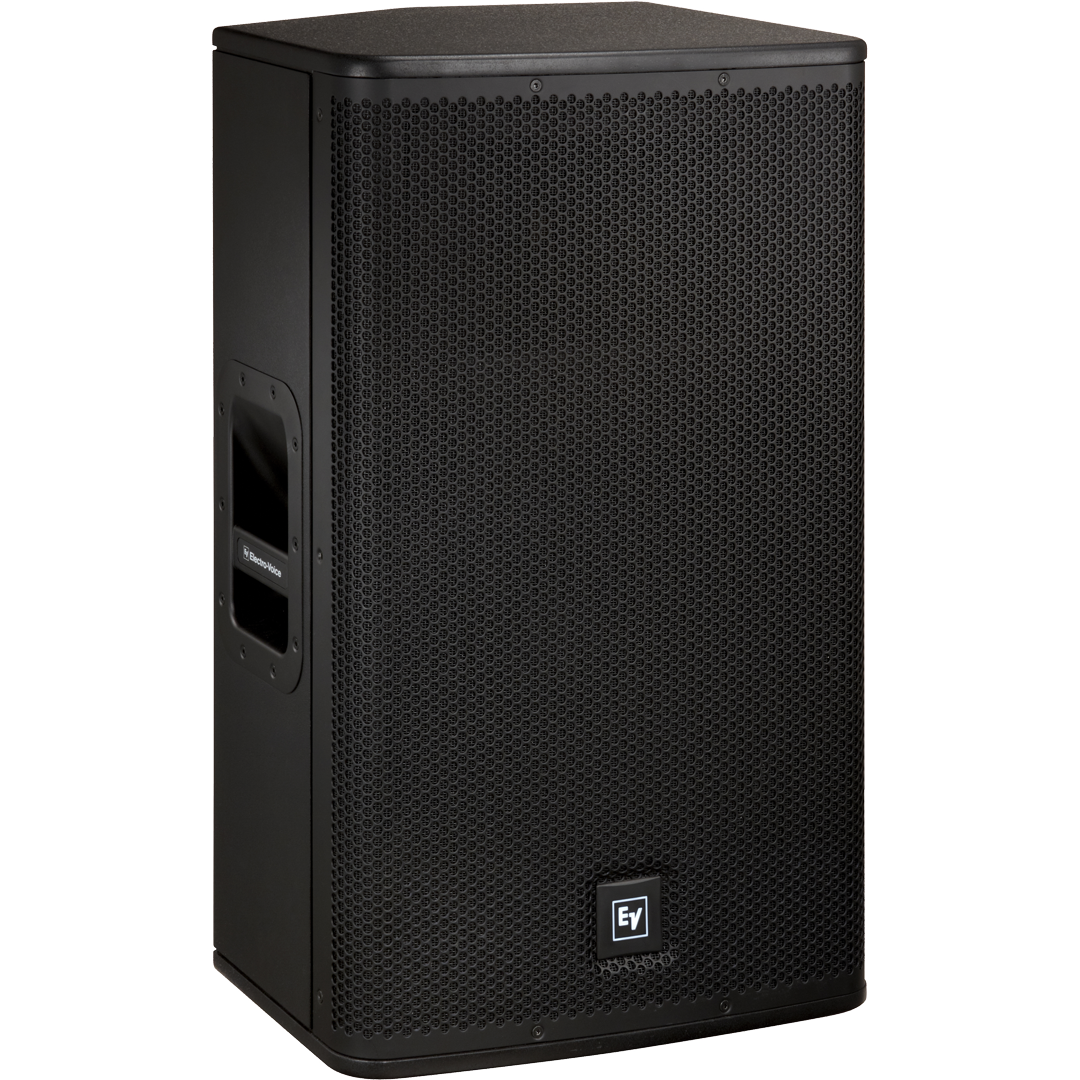

- Rugged wood cabinet — pole mounts or stacks with Live X Subwoofers
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint Frequency Response (-3 dB) 56 Hz - 18 k Hz Frequency Response (-10 dB) 44 Hz - 20 k Hz Max. SPL/1m (calc) 134 dB Coverage
(Nominal -6 dB) H° 90 ° Coverage
(Nominal -6 dB) V° 50 ° LF Transducer (1) EVS-15K, 381mm (15”) Woofer HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver Crossover Frequency 1.7 k Hz Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output Grill 18GA Steel with Black Powdercoat Height 708 mm (27.87") Width 432 mm (17.01") Depth 382 mm (15.04") Weight Net 24.3 kg (53.57 lbs) Shipping Weight 29.5 kg (65.04 lbs)
